Client API reference

The client API runs one record through a bookmark’s model and returns its outputs. It is the only endpoint for outside software; a client first needs a key and the bookmark, see Clients and keys.

Request

POST /api/v1/bookmarks/<bookmark id>/predictions
X-MLSuite-Key: mls_...
Content-Type: application/json

{"features": {"age": 45, "income": 58000, "has_guarantor": false,
  "employment__salaried": 1, "employment__self_employed": 0, "employment__unemployed": 0}}

• Bookmark id: the opaque id the client’s Bookmarks tab shows, the same one a public page uses.
• X-MLSuite-Key: one of the client’s keys.
• features: one record under the model’s own feature names, not the form’s labels. Each value is a number, a boolean, a text of at most 256 characters, or null. Send every feature, even when null; extra keys are ignored. A one-hot group takes 1 for the chosen option and 0 for the others. The runtime reads a text value only when it holds a decimal number or true/false in at most 64 characters, so send category labels and dates as the model’s own encoded features.

Only the model validates the record. A record it cannot use is refused with 422 features_rejected and the runtime’s reason.

curl

curl -sS https://mlsuite.irlab.org/api/v1/bookmarks/$BOOKMARK_ID/predictions \
  -H "X-MLSuite-Key: $MLSUITE_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{"features": {"age": 45, "income": 58000, "has_guarantor": false, "employment__salaried": 1, "employment__self_employed": 0, "employment__unemployed": 0}}'

Response

200 OK says what ran and gives the model’s outputs in output order. The same requestId comes back in the X-Request-Id header and names the call in the request log.

{
  "requestId": "797a8a97-65af-4c9b-8289-31023eeffaa9",
  "bookmark": { "id": "5c3e23d0-40c7-432f-8bb0-188f2c51faab", "name": "loan-approval" },
  "snapshot": { "version": 2, "name": "Readable labels and review questions" },
  "model": { "name": "Demo Loan Tree", "sha256": "42f76acf5d20…" },
  "outputs": [{ "prediction": "approve", "probabilities": { "approve": 1.0, "decline": 0.0 } }]
}

A classifier output is {"prediction", "probabilities"}, a regressor output {"value"}. The run is stored as one of the organization’s inferences with the origin API and the client’s name as its author.

Errors

Every refusal is an RFC 9457 problem (application/problem+json) with a stable code, and a requestId once the call was logged:

{
  "title": "Features rejected by the model",
  "status": 422,
  "detail": "The model could not use these features: Missing features: \"has_guarantor\", …",
  "instance": "/api/v1/bookmarks/5c3e23d0-40c7-432f-8bb0-188f2c51faab/predictions",
  "code": "features_rejected",
  "requestId": "a3cebfe4-d2f5-4c73-aed8-b6c119bc6e2a"
}

Status	code	When
400	invalid_body	The body is not JSON, or has no features object.
400	invalid_features	A value is not a number, boolean, short text or null.
401	invalid_key	The key is missing, wrong or revoked.
403	client_suspended	A superadmin suspended the client.
404	bookmark_not_found	No such bookmark, or the client was not given it.
409	bookmark_not_runnable	The snapshot binds more than one model, or the model is too large.
409	bookmark_changed	The bookmark moved while the call ran; send it again.
422	features_rejected	The model could not use the record.
429	rate_limited	The client’s calls per minute are used up.
429	quota_exceeded	The organization’s monthly calls are used up.
500	internal_error	The call could not be completed.
502	runtime_failed	The runtime failed to predict.
503	runtime_busy	Every runtime slot for API clients is in use.

429 and 503 carry Retry-After in seconds: to the next minute, to the next UTC month, or 5.

Limits and CORS

The defaults are 60 calls a minute per client, 10,000 succeeded calls a month per organization and 2 concurrent API runs on the instance; see Usage and requests.

The endpoint accepts any origin without credentials and exposes X-Request-Id and Retry-After. That does not make browser use safe: a key in browser JavaScript is readable by anyone who loads the page. Call the API from a backend.

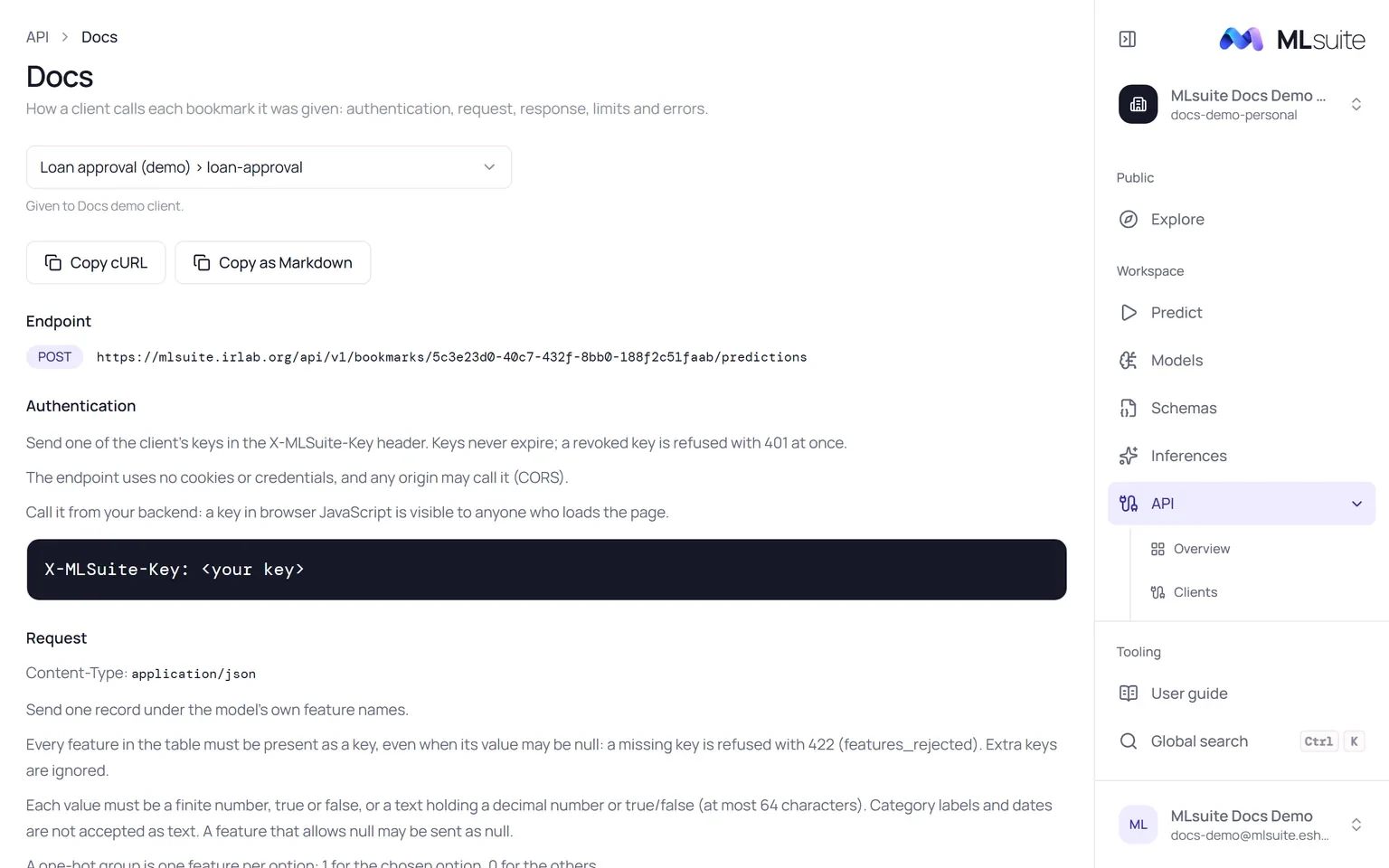

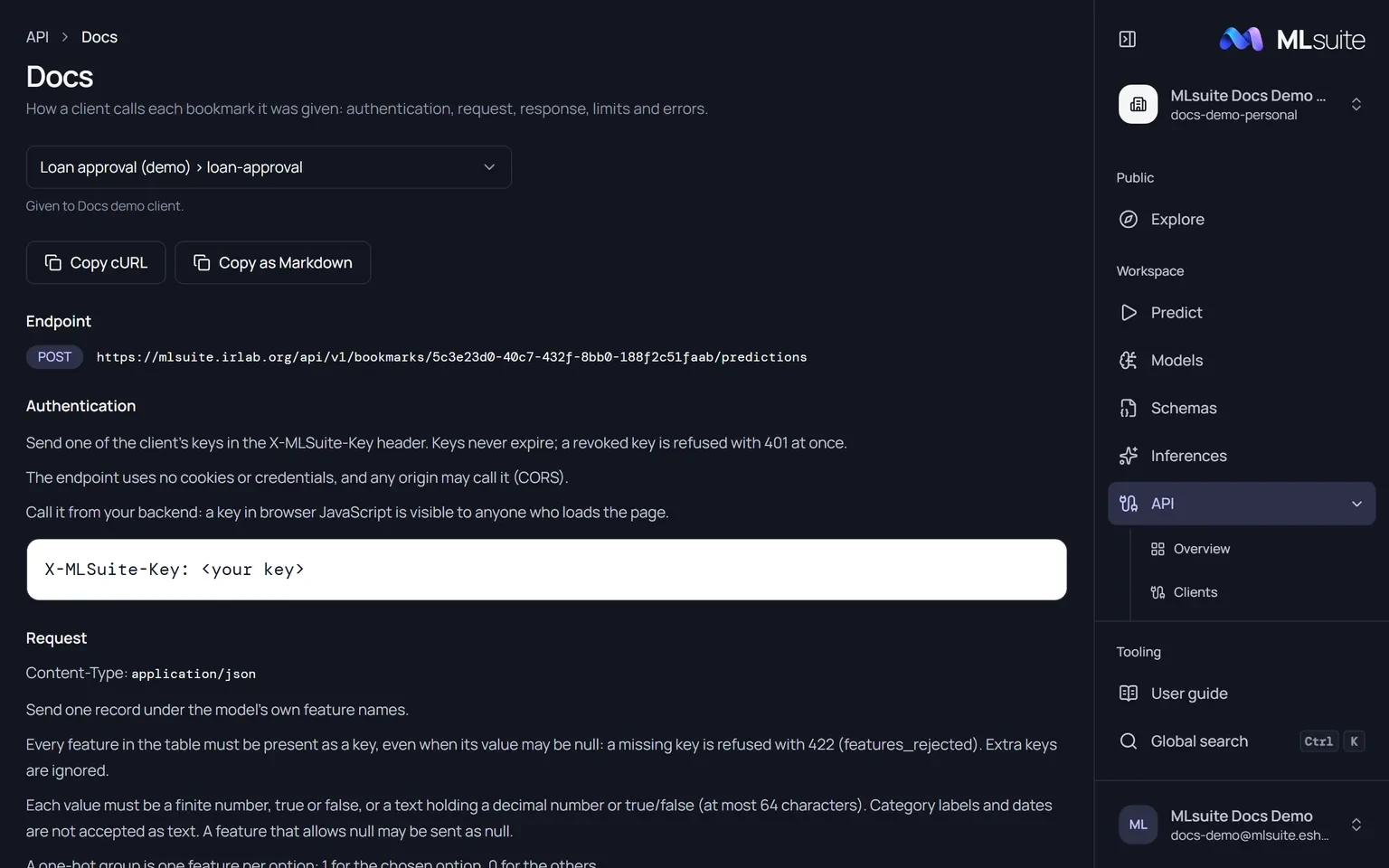

Documentation in the app

API › Docs documents each bookmark given to a client from its model’s signature: the endpoint, authentication, a table of features with their types and whether null is allowed, the response outputs, limits, errors and a cURL example. Copy cURL and Copy as Markdown hand it to the people who write the client software.
